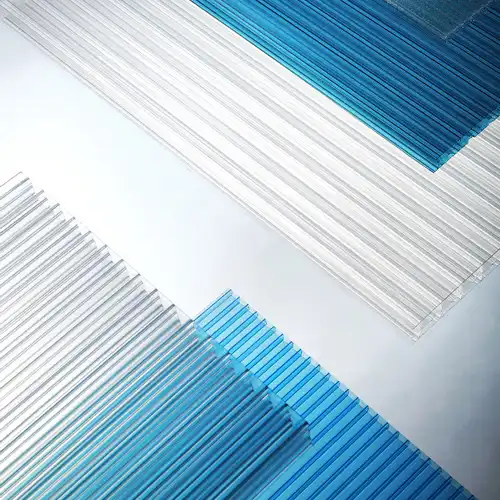

Polycarbonate roof panels have gained immense popularity due to their exceptional durability, impact resistance, and ability to transmit natural light. These qualities make them an ideal choice for various applications, including greenhouses, skylights, and patio covers. However, cutting polycarbonate roof panels requires careful techniques to ensure clean edges and prevent cracking, which can compromise the panel's structural integrity and overall performance.
In this comprehensive blog post, we will delve into the methods, tools, and tips necessary for effectively cutting polycarbonate roof panels. We will cover both straight and curved cutting techniques, ensuring you have the knowledge and skills to tackle any cutting task with confidence. By following the guidelines outlined in this post, you can achieve precise and clean cuts, resulting in a successful and aesthetically pleasing installation of your polycarbonate roof.
1.What Tools Are Needed to Cut Polycarbonate Roof Panels?
To ensure precise and clean cuts when working with polycarbonate roof panels, it is crucial to have the right tools at your disposal.
Here is a detailed overview of the essential tools you will need:
1.1.Cutting Tools:
Circular Saw: A circular saw equipped with a fine-toothed blade specifically designed for cutting plastics is ideal for making straight cuts on polycarbonate roof panels. The fine teeth minimize chipping and ensure a smooth, clean cut.
Jigsaw: A jigsaw with a fine-toothed blade is a versatile tool suitable for cutting curves and intricate shapes in polycarbonate panels. Its ability to follow curved lines makes it ideal for cutting holes or creating custom shapes.
Utility Knife: A sharp utility knife can be used to score and cut thin polycarbonate panels (typically up to 6mm in thickness). By carefully scoring along the desired cut line, you can snap the panel cleanly along the score.
1.2.Measuring and Marking Tools:
Measuring Tape and Marker: Accurate measuring and marking are essential for precise cuts. A measuring tape and marker are used to measure and mark the cut lines on the polycarbonate panel. Clear and visible markings ensure that the cuts are made to the desired dimensions and in the correct location.
1.3.Safety Gear:
Work Gloves and Safety Glasses: To protect your hands and eyes from debris and sharp edges during cutting, it is important to wear work gloves and safety glasses. These protective measures help minimize the risk of injury while working with polycarbonate panels.
2.How To Cut Straight Lines in Polycarbonate Roof Panels?
2.1.Cutting Straight Lines with a Circular Saw
Step 1: Measure and Mark
Measure and mark the cut line on the polycarbonate panel using a measuring tape and marker.
Step 2: Set Up the Panel
Place the polycarbonate panel on a stable work surface with the marked cut line hanging off the edge of the surface.
Step 3: Cut the Panel
Adjust the circular saw to a low speed and set the blade depth slightly deeper than the thickness of the panel.
Hold the panel firmly and guide the saw along the marked cut line, applying steady pressure.
Cut through the panel in one continuous motion to avoid chipping or cracking.
Step 4: Finishing
Remove any burrs or rough edges using a fine-toothed file or sandpaper.
3.How To Cut Curves and Holes in Polycarbonate Roof Panels?
3.1.Cutting Curves with a Jigsaw
Step 1: Measure and Mark
Measure and mark the curve or hole on the polycarbonate panel using a template or compass.
Step 2: Secure the Panel
Secure the panel to a work surface using clamps to prevent movement during cutting.
Step 3: Cut the Panel
Insert a fine-toothed jigsaw blade into the tool.
Start the jigsaw and carefully follow the marked line, moving the saw at a moderate speed.
Use gentle, smooth motions to avoid cracking or chipping the polycarbonate.
Step 4: Finishing
Smooth any rough edges with fine-grit sandpaper or a file to ensure a clean finish.
4.Tips for Cutting Polycarbonate Roof Panels
4.1.Support the Panel
Always support the panel adequately to prevent it from bending or flexing during cutting, which can lead to cracking.
4.2.Choose the Right Blade
Use a fine-toothed blade designed for cutting plastics to minimize chipping and cracking.
4.3.Minimize Heat Build-Up
Avoid high-speed cutting to prevent overheating the material, which can cause melting and rough edges.
Conclusion
In conclusion, cutting polycarbonate roof panels is a task that requires the right tools, techniques, and attention to detail to achieve accurate and clean cuts. Whether you're cutting straight lines or curves, using the correct tools and following the outlined steps will help you complete your project successfully and ensure the best possible results.
Remember to prioritize safety by wearing appropriate protective gear and handling the polycarbonate sheets with care. Choose the right cutting tool based on the thickness and size of the panels, and ensure that it is sharp and in good condition. Measure and mark the cut lines accurately, and use a steady hand and light pressure to guide the tool through the material.
If you encounter any difficulties or have specific questions about our polycarbonate roof panels, please do not hesitate to contact us at simon@chiancess.com. Our knowledgeable team is always ready to provide guidance and support to help you achieve the best possible results for your project.
By following these best practices and seeking expert advice when needed, you can confidently cut and install polycarbonate roofing, creating a durable, weather-resistant, and visually appealing roof that will enhance the beauty and functionality of your outdoor space for many years to come.
